40ft Gooseneck 3 Axle Chassis is designed for transporting a 40’ ISO container This chassis meets all DOT, AAR, ANSI, TOFC, FMVSS, SAE, and TTMA specifications

Gooseneck container trailers are mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, and matching multimodal logistics systems.

CIMC 40ft Gooseneck Container Chassis description

CIMC Tri axle chassis for sale 40ft container skeleton trailer is currently used in port . CIMC terminal trailer is a high capacity terminal trailer capable of carrying a container payload of up to 70 tons . This trailer is designed to transport either a single 20ft , twin 20ft , a 40 ft , or a 45ft container at once. You just have to drop ’em boxes and take ’em boxes. The application of the terminal trailer increased the handling rate by 30% ; capable of operating flippers without entangling with other containers.

40′ Gooseneck 3–Axle Chassis

For the product quality, we used high strength steel at main beam, this makes the product carry large capacity and the product does not cause product deformation. We not only provide high quality products, but also provide quality pre-sale services and after-sales services. So you can rest assured to buy our products.

Specification:

Overall L*W*H: 12360*2500*1550mm

Load weight:40 tons ~70 tons

Axles: 3×13 tons / 14 tons / 15 tons /16tons / 20 tons

Tire:12R22.5

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Airbag / Mechanical / bogie suspension

Brake system: Wabco

Electric system: 24V / 12V + LED lights

Accessory: spare tire carrie + tool box

Remark: we can supply different specification for different road condition

Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks they may, all the accessories have 20 years of experience in the use of the supplier of choice, long-term repeated use, with sufficient strength.

40ft skeleton container trailer fast loading and unloading, and can be directly and easily from one vehicle to another vehicle facelift.

CIMC 40ft Gooseneck Container Chassis

With a length of 40 foot 10 inches and a GVWR of 75,000 lb, this gooseneck triaxle chassis is designed for the stevedoring and transportation of one heavy ISO 40 foot container.

Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

3 Axles 40ft Gooseneck Skeletal Container Chassis

The container chassis frame and main fabricated parts are made from high strength low alloy steel ASTM A572 Grade 50, having a minimum yield point of 50,000 PSI or higher. Some of the standard components include 11R22.5 tires on 10 hole hub piloted wheels, spring suspension, antilock braking system (ABS), and two-speed landing legs.  Several options to choose from.

Chassis can be stacked up to 5 high for power only transport

Buy 40ft Gooseneck Container Online

The addition of a third axle to our standard 40’ tandem container chassis increases this models GVWR to 75,000 lbs.  When hauling something with a little more weight, this tri-axle container chassis is the perfect combination of affordability and maximum reliability.

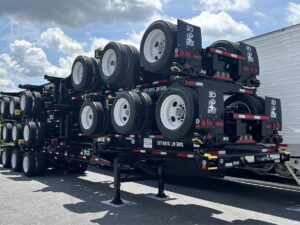

40 Foot GN chassis stacked for transport
